QuikSep SP ODS-TF C18 Reversed Phase Column
The QuikSep SP ODS-TF series liquid chromatography columns utilize imported ultra-pure silica gel, which has undergone surface hybridization treatment, enabling the packing material to withstand high pH environments and allowing for a wider range of mobile phases to be used.
Online

The QuikSep SP ODS-TF series liquid chromatography columns utilize imported ultra-pure silica gel, which has undergone surface hybridization treatment, enhancing the packing's resistance to high pH environments. This allows for a broader range of mobile phases to be used, making them suitable for the purification of basic compounds and fermentation products. Huideyi's unique packing production process ensures that the particles exhibit uniform particle size, pore size distribution, and a smooth surface, thereby providing excellent mechanical strength, separation efficiency, and superior batch-to-batch stability.


Features:

1. Advanced pelletizing process ensures more uniform particle size; low column pressure, high column efficiency, and good separation performance

2. Large specific surface area, higher sample loading capacity, and high separation efficiency

3. Unique surface hybridization process, higher chemical stability

4. With a tolerance range of pH 1.5-12, the all-round chromatography column in method development significantly enhances the lifespan of the column in high pH mobile phases



Product

Particle Size(μm)

C%

Pore Size

End-capped

pH

SP ODS-TF

5,10

20%

100/120Å

Yes

1.5-12

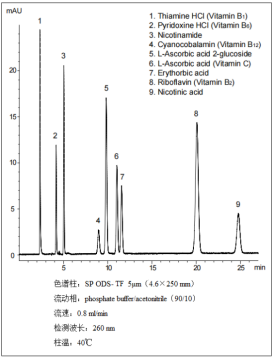

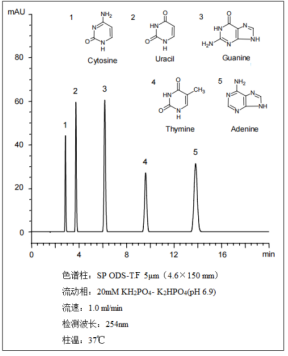

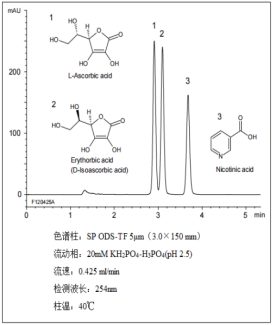

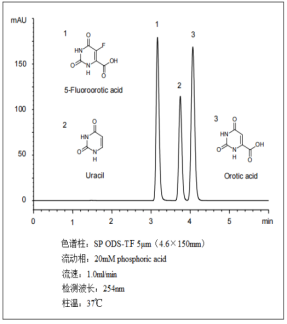

4fe3b943-572e-4526-a38e-19450594ee5f.png   1081a544-939c-41d9-bd7d-f43e1b1a2531.png


4c58c02f-c938-4ab2-b0d1-919436ebb5cd.png     efa94b24-2db0-40aa-a12d-928939277e77.png

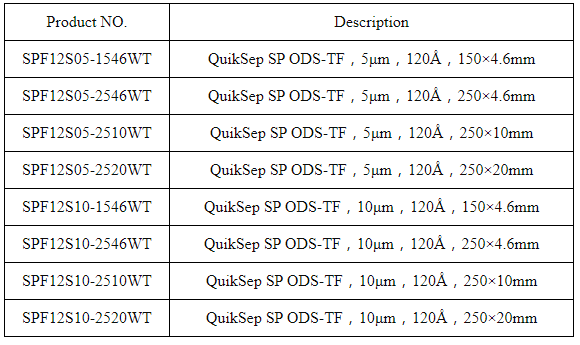

Product NO.

Description

SPF12S05-1546WT

QuikSep SP ODS-TF,5μm,120Å,150×4.6mm

SPF12S05-2546WT

QuikSep SP ODS-TF,5μm,120Å,250×4.6mm

SPF12S05-2510WT

QuikSep SP ODS-TF,5μm,120Å,250×10mm

SPF12S05-2520WT

QuikSep SP ODS-TF,5μm,120Å,250×20mm

SPF12S10-1546WT

QuikSep SP ODS-TF,10μm,120Å,150×4.6mm

SPF12S10-2546WT

QuikSep SP ODS-TF,10μm,120Å,250×4.6mm

SPF12S10-2510WT

QuikSep SP ODS-TF,10μm,120Å,250×10mm

SPF12S10-2520WT

QuikSep SP ODS-TF,10μm,120Å,250×20mm
